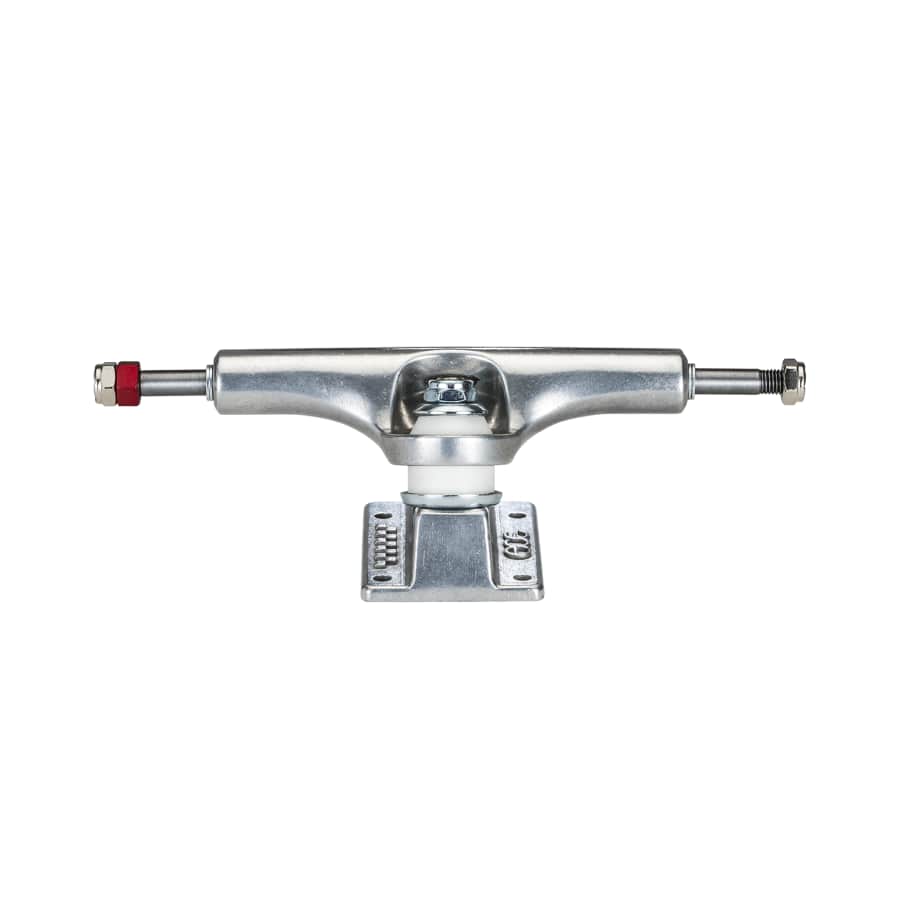

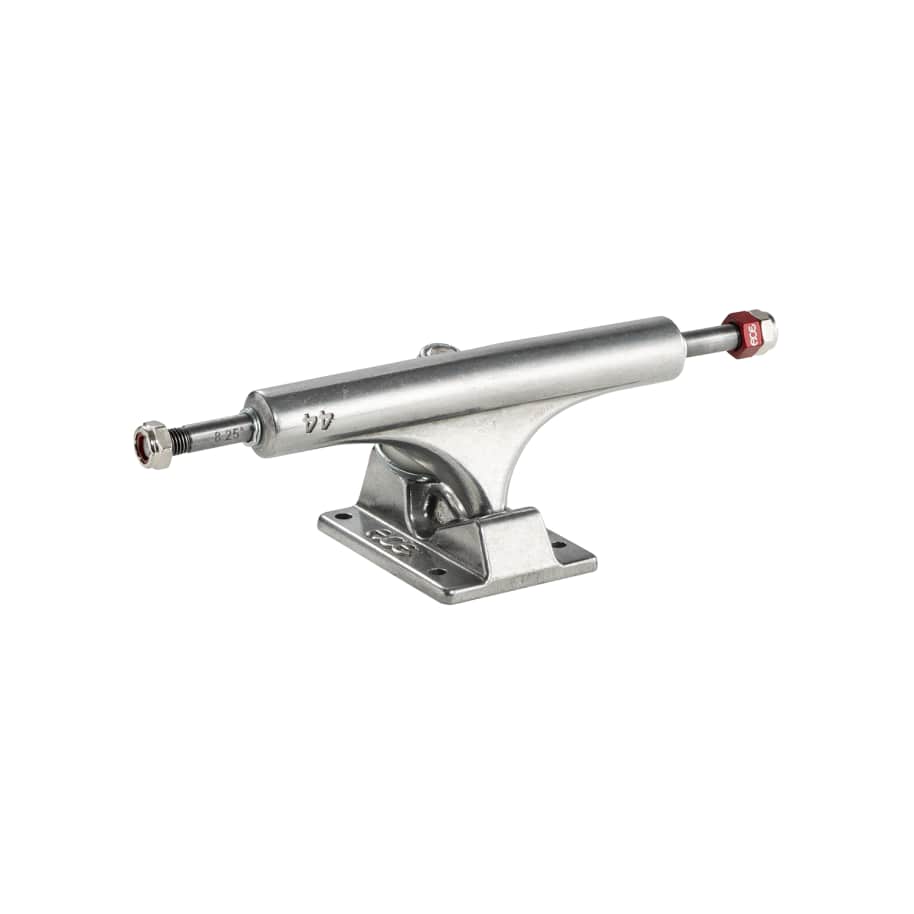

Ace AF1 44 Polished Trucks 8.25" Axle

Ace AF1 44 Polished Trucks 8.25" Axle

The all-new ACE AF1 features game-changing performance without deviating from our original Ace geometry. The AF1 is carefully manufactured using our proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest cast truck on the market. We updated the sizing on the 44 thru 77 models for a better fit across multiple board widths.

The Ace AF1, tomorrow’s technology today!

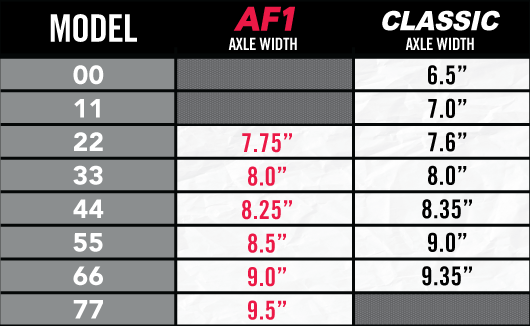

44: 8.25" Axle with 143mm hanger fits decks 8.125" - 8.3" wide.

• All trucks sold in sets of two (2)
• Axle Width: 8.25" (209mm)
• Hanger Width: 5.6" (143mm)
• 2.1" (53mm) tall
• Weight: 13.9 oz
• Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
• True T6 heat-treated baseplates and hangers
• SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
• Patent pending rethreading axle nuts - no more damaged axle ends!
• Durable Hand-poured 96a urethane pivot bushings for better response.
• Refined suspension for a cleaner turn.
• Top Bushing: 12mm tall | 91a hardness
• Bottom Bushing: 14mm tall | 86a hardness
• Machine-faced hanger ends for precise bearing contact
